Preload (continued) ___________________________________________________________________________________
PRELOAD
CALCULATION |
| Once the initial end play has been removed (ball contact angle = ao), then further axial load (preload) will cause axial displacement d at ball contact angle a. Formulae to calculate loaded contact angle a, initial (no load) contact angle ao and axial displacement d under a given preload are as follows:
|
 |

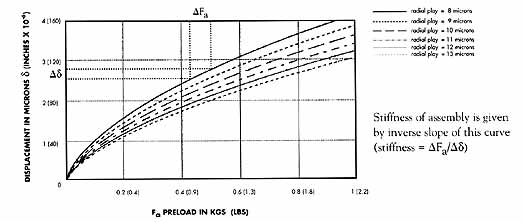

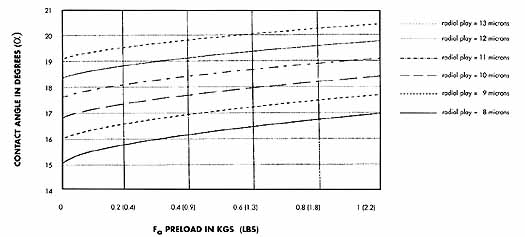

| Contact Dynaroll directly to obtain a chart of displacement d and contact angle a vs. preload Fa for a particular bearing. Also see section on Assembly Characteristics for more details. |
