MicroTorque™ Analysis: MRI has pioneered the use of high-sensitivity,
low-speed torque testing (MicroTorque™ Analysis) to reveal detailed information
of the internal structure of rotating components. Our torque testers can detect
torque variations as low as one millionth of an ounce-inch, showing the effects of
lubricant, bearing, contamination and alignment issues.
Review our Torque Analysis
to learn more about
torque measurements and how they relate to miniature ball bearings and other small
rotating components. Or learn more Principles of MicroTorque™ Testing
The M15W is the third-generation MicroTorque™ tester from Dynaroll Corp. It uses the
same linear load cell technology as previous generations, giving the same ease of use and low fixture
dependency, combined with a new Windows-based system that offers many additional benefits.
- Sensitive torque measurement pioneered by Dynaroll's subsidiary company
Measurement Research, Inc. (MRI) has become the de facto
standard for the disk drive, gyroscope and other industries needing
analytical information on part rotation.
- MicroTorque™ analysis shows many bearing and pivot defects, including
brinelling, contamination, raceway misalignment, preload, lobing,
lubricant smoothness, retainer drag and other rotational issues.
- Inherently low noise level allows analytical torque measurements as low
as 0.001 gm-cm (0.000014 oz-in).
- Advanced TorqueScope™ Windows-based system runs on any computer with
RS-232C serial port.
- Enhanced programming capability allows user to easily create an unlimited
variety of tests for many different torque-measuring applications.
- Rotation profile can be programmed for any speed (up to 4 RPM, as low
as 0.001 RPM with special gearbox), any angle, any direction, with or
without data measurement, in any combination - with looping capability.
Gives unprecedented flexibility in setting up custom tests.
- Direct compatibility with Excel, Word and other MS Windows-based
programs. Test files can be automatically exported to Excel for
- Flexible zoom, cross-hair measurement, overlay and multiple-window
features allow quick visual inspection of torque features.
- Digital analysis of test data allows the user to set pass/fail criteria for most
important torque functions, simplifying incoming inspection of parts. Test
results can be logged to MSExcel compatible file.
- New multiple-range calibration procedure extends the accuracy of the
load cell over its full 10,000:1 range. This particularly improves low
torque measurement accuracy.
Learn more about the Advanced TorqueScope
software that accompanies every M15W Torque Tester.
The M15W's 12-inch diameter platter with removable 1C collet allows
quick fixturing of many test parts. The platter has a standard hole pattern
for mounting custom fixtures and also has movable fences that can trap
a rectangular part anywhere on the surface. Small round parts are easily
held in the collet, while larger parts can be mounted on the platter.
The X-Z linear stages that comprise the load cell carrier gantry allow
positioning of the force measuring device anywhere over the platter
surface. The X stage has a digital readout on position in inches or mm
to facilitate measurement of torque arm radius.

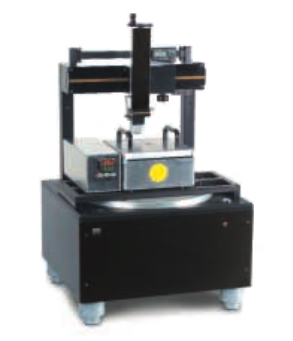

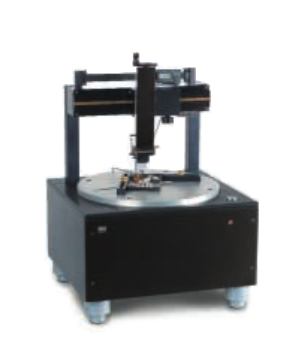

|M15W testing disk drive's voice coil motor||Oven option allows high-temperature besting
|Height:||24 in (61 cm)|
|Width:||15 in (38 cm)|
|Depth:||14 in (36 cm)|
|Weight:||92 lbs (43 kg)|
|Speed range:||0.05 to 4.0 RPM (standard gearbox)|
|Revolutions:||0.1 degrees to 999 revolutions|
|Minimum Torque:||0.001 gm-cm|
|Maximum Torque:||20 gm-cm to 10,000 gm-cm (depending on load cell)|
|Platter size:||12 in (30 cm)|
|Throat Height:||6 in (15 cm)|
|System Requirements:||Pentium II processor, Windows 98, 2000, ME, XP|
|Power:||100-120 VAC, 50/60 Hz.|
|Note: Dynaroll reserves the right to change these specifications without notice.|
